AllStyle ABFT Air Handler – 2.5 Ton (30K BTU), R-454B, Multi-Position

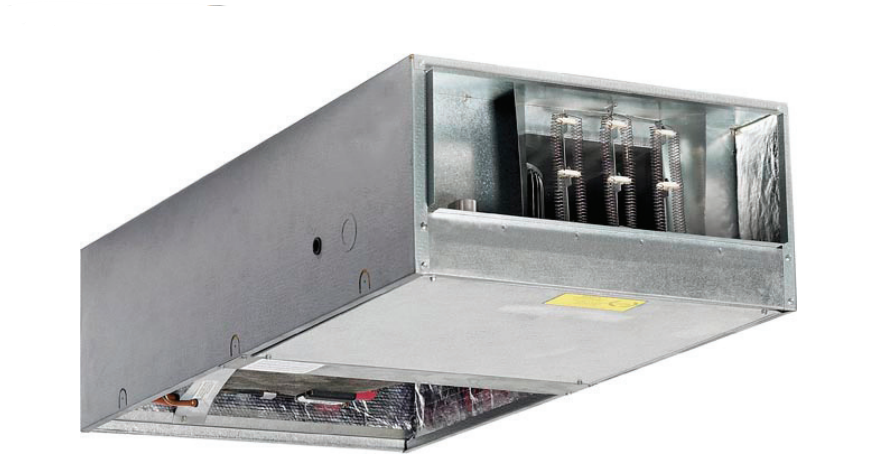

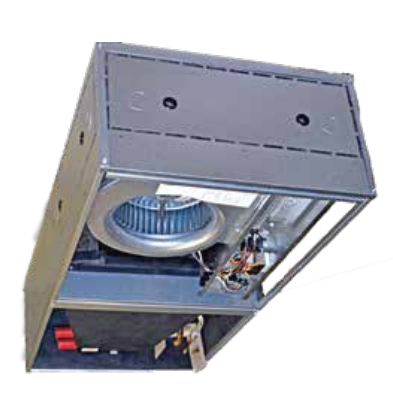

The ABFT30 is a 2.5-ton, ceiling-mounted air handler suitable for cooling-only, electric heating, or heat pump applications. It is compatible with R-454B refrigerant and features a galvanized steel cabinet, multi-speed motor, and optional factory-installed electric heat ranging from 3 to 10 kW.

Specifications:

• Cooling Capacity: 2.5 Ton (30,000 BTU)

• Airflow: Varies based on application

• Motor: Multi-Speed

• Refrigerant Compatibility: R-454B

• Configuration: Ceiling Mount, Furred Down

• Dimensions: Height: 12.625 in, Length: 48 in, Width: 22.5 in

• Weight: Approximately 94 lbs

• Electrical: 208-230V / 1 Phase / 60 Hz
