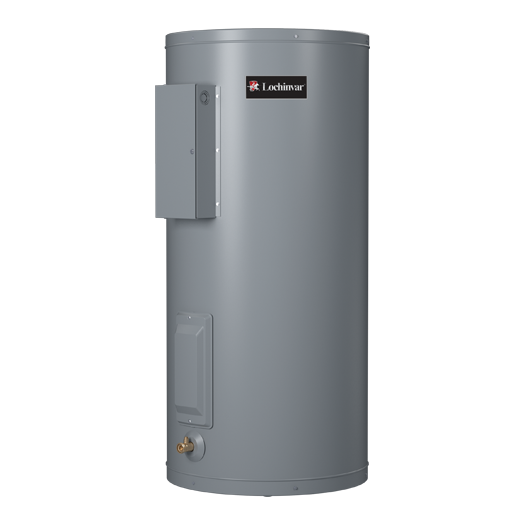

Lochinvar LDS-50 XL 50-Gallon Light-Duty Commercial Electric Water Heater – 480V, 3-Phase, Dual 4500W Elements

The Lochinvar LDS-50 XL is a high-efficiency, light-duty commercial electric water heater designed for applications requiring reliable and consistent hot water delivery. With a 50-gallon capacity and dual 4500-watt heating elements operating at 480 volts, 3-phase, this unit ensures rapid recovery and optimal performance. Its compact short design allows for flexible installation in spaces with height constraints.

Key Features:

• Capacity: 50 gallons

• Voltage/Phase: 480V, 3-phase

• Wattage: Dual 4500W elements

• Tank Construction: Glass-lined steel tank fused at 1,600°F for corrosion resistance

• Insulation: Non-CFC foam insulation minimizes standby heat loss

• Thermostats: Adjustable thermostats for precise temperature control

• Safety Features: Automatic overheat protection with manual reset high-limit control

• Anode Rod: High-capacity anode rod for extended tank life

• Wiring: Factory-wired for three-phase service; field convertible to single-phase

• Certifications: ASME temperature and pressure relief valve included
