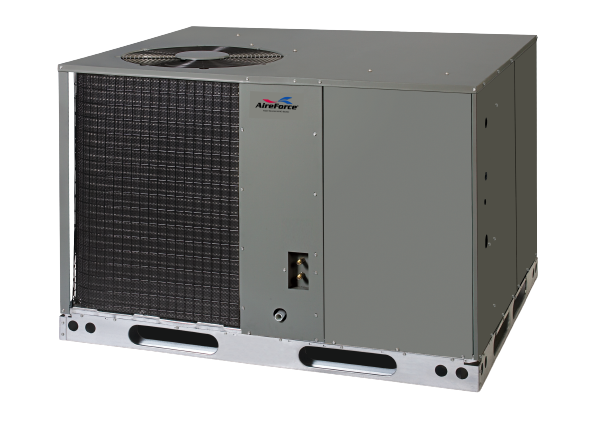

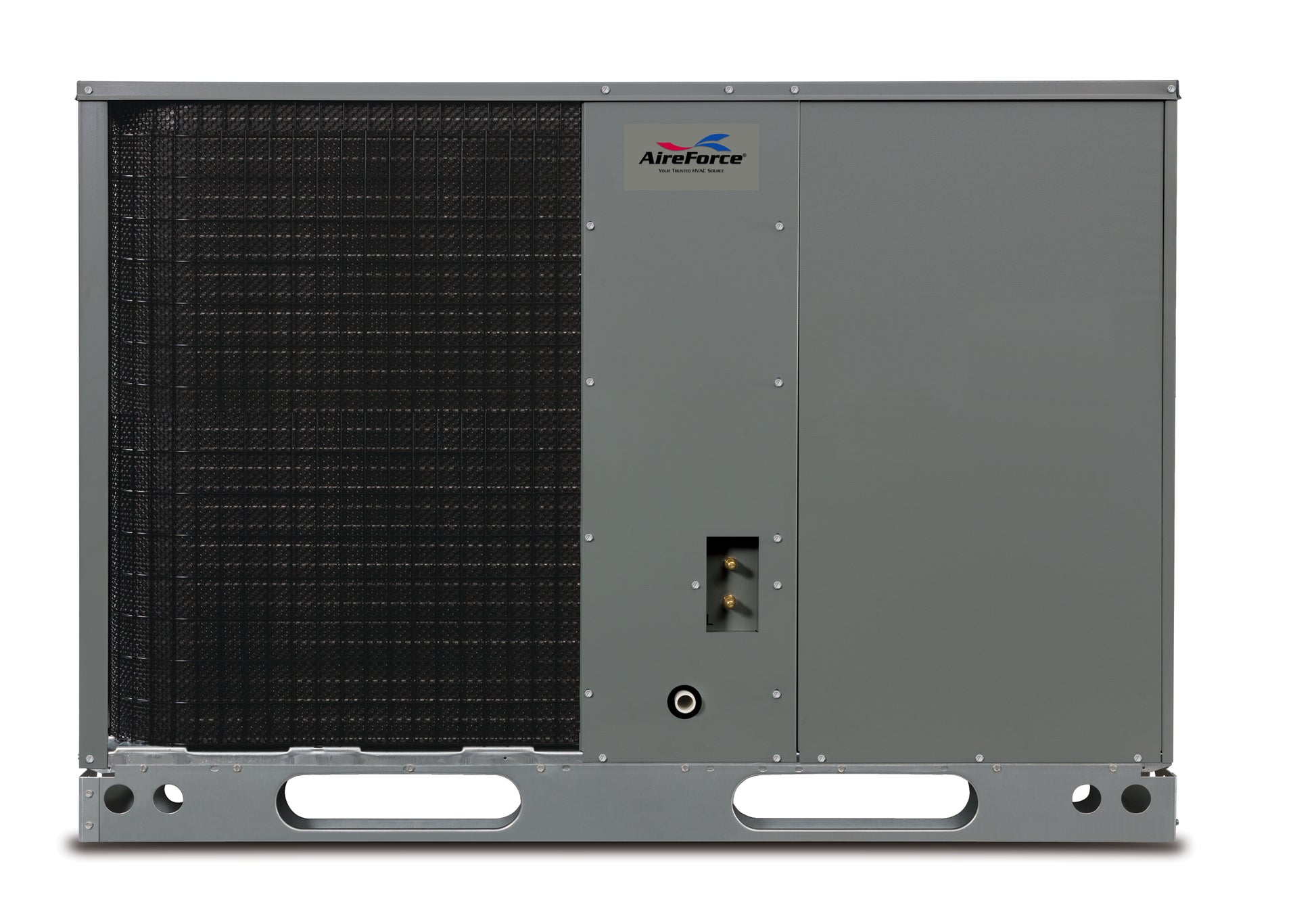

Q104SD-X36K – 3 Ton Convertible Packaged Heat Pump, R-410A, 208/230V

The Q104SD-X36K is a versatile 3-ton packaged heat pump designed for efficient year-round comfort in residential or light commercial applications. Engineered for both horizontal and downflow configurations, this convertible unit provides reliable heating and cooling in one compact cabinet. With a factory-installed scroll compressor and R-410A refrigerant, this unit ensures quiet operation, long-lasting performance, and simplified installation.

Key Features:

• Cooling & Heating Capacity: 3 Ton (36,000 BTU)

• System Type: Convertible Packaged Heat Pump (Cooling + Heating)

• Refrigerant: R-410A (Factory charged)

• Compressor: Scroll – reliable and energy-efficient

• Voltage: 208/230V, Single Phase

• Installation Configuration: Convertible (horizontal or downflow)

• Liquid Line Size: 3/8"

• Suction Line Size: 7/8"

• Weight: Approx. 290 lbs

• Cabinet Construction: Heavy-duty galvanized steel with protective coating

• Top-discharge fan for quiet, efficient operation

• Built-in reversing valve for seamless heating and cooling transitions

• Easy-access service panels for faster installation and maintenance

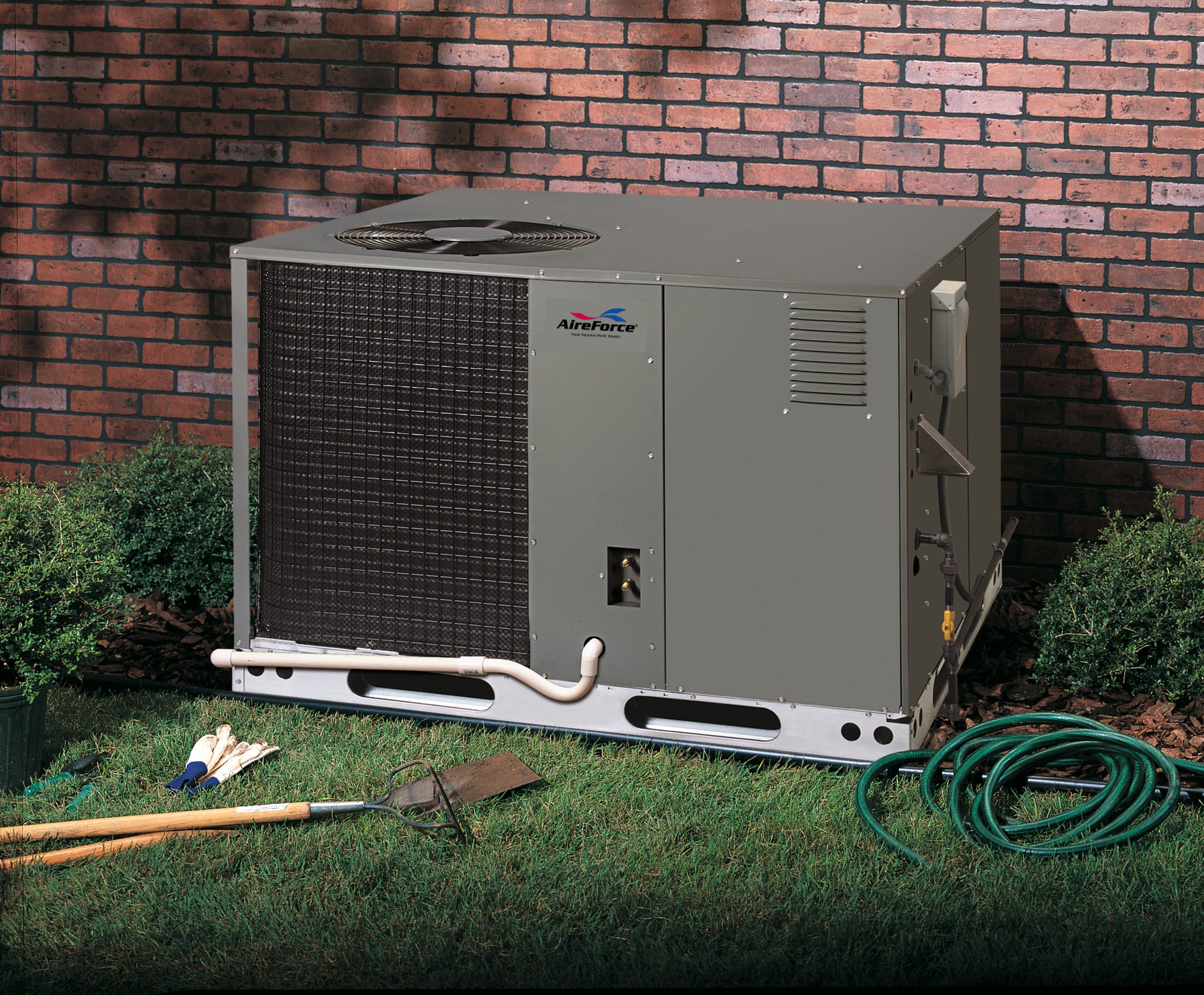

• Ideal for rooftop or ground-level installation
