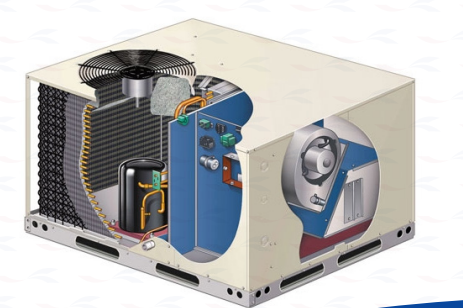

Q6SE-X36K – 3 Ton Packaged Heat Pump, 14 SEER, R-410A, 208/230V, Convertible Airflow

The Q6SE-X36K is a reliable and efficient 3-ton packaged heat pump that provides year-round comfort for residential or light commercial applications. Designed with a scroll compressor, factory-charged R-410A refrigerant, and a convertible airflow design (horizontal or downflow), this unit is perfect for rooftop or slab installations. Its durable cabinet, quiet operation, and service-friendly features make it a trusted solution for heating and cooling in a single system.

Key Features:

• Cooling Capacity: 36,000 BTU (3 Ton)

• Heating Capacity: 34,000 BTU

• SEER Rating: 14

• HSPF: 8.0

• Compressor: Copeland Scroll – quiet and energy-efficient

• Voltage: 208/230V, Single Phase

• Refrigerant: R-410A (Factory charged)

• Blower Motor: 1/2 HP ECM

• Outdoor Fan Motor: 1/5 HP

• Airflow: Approx. 1,200 CFM

• Sound Rating: 76 dBA

• Airflow Configuration: Convertible (horizontal or downflow)

• Liquid Line Size: 3/8"

• Suction Line Size: 3/4"

• Weight: Approx. 328 lbs

• Cabinet: Heavy-duty galvanized steel with powder-coated finish

• Top-discharge fan for efficient, low-noise airflow

• Built-in reversing valve for heating/cooling switch-over

• Removable access panels for easy service and maintenance

• Factory-installed filter rack (1" or 2")

• High/low pressure switches for system protection
