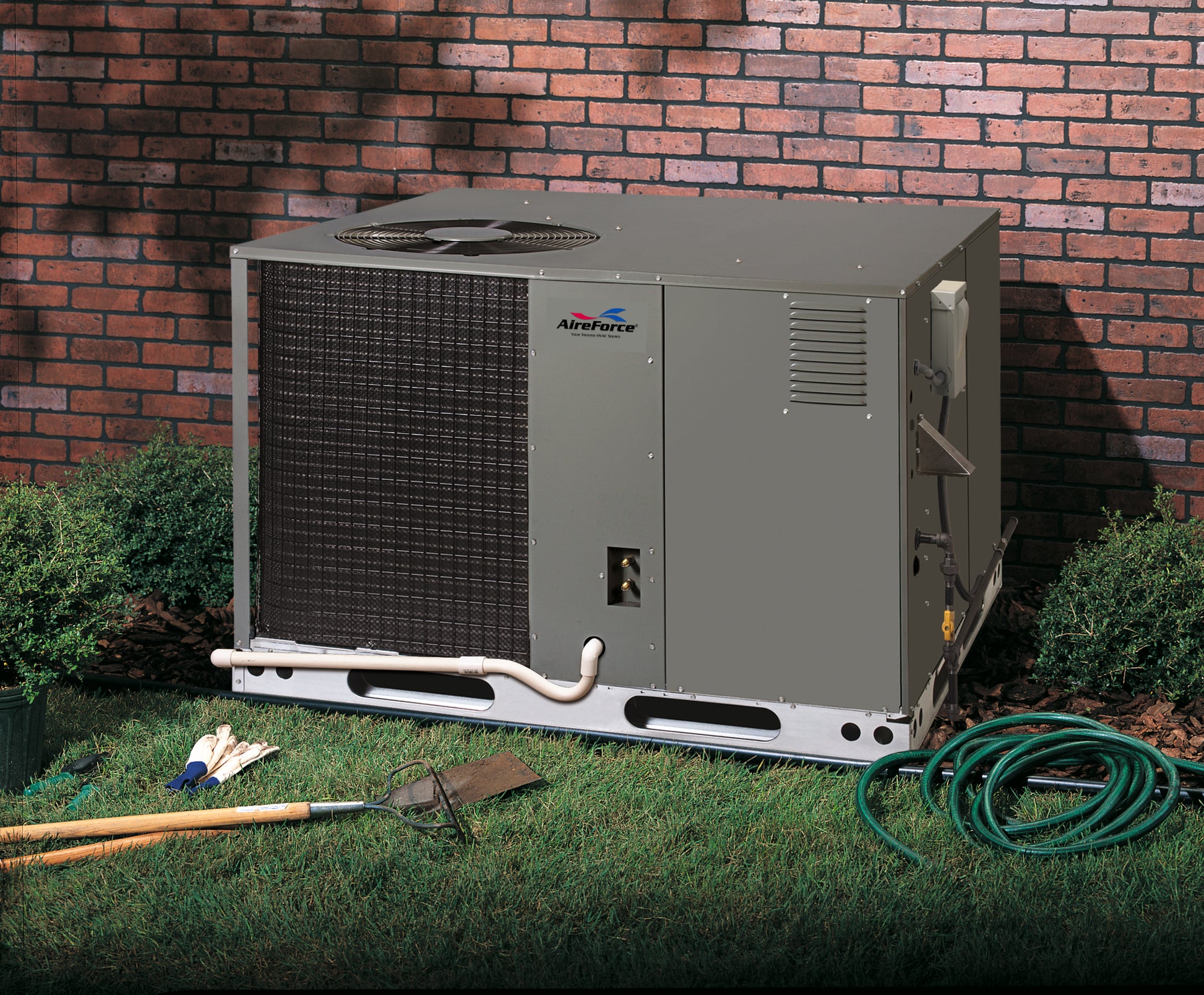

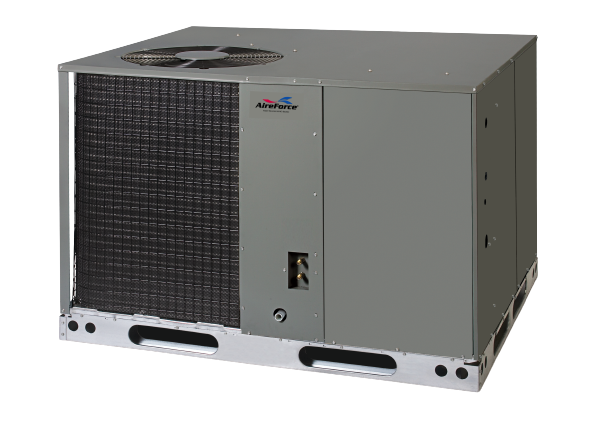

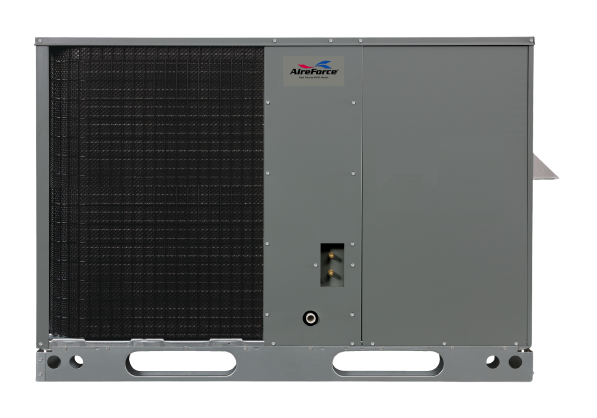

R104GD-024K045C – 2 Ton Convertible Packaged Gas/Electric Unit, 45,000 BTU Heat, R-410A, 208/230V

The R104GD-024K045C is a high-performance 2-ton packaged gas/electric unit, ideal for residential and light commercial applications requiring year-round heating and cooling. This dual-fuel system combines electric cooling with a gas furnace for heating, all in one compact, convertible cabinet. Designed for horizontal or downflow airflow configurations, the unit is factory-charged with R-410A refrigerant and equipped with a reliable scroll compressor and 45,000 BTU gas heat exchanger.

Key Features:

• Cooling Capacity: 2 Ton (24,000 BTU)

• Heating Input: 45,000 BTU/h (Natural Gas)

• AFUE: 81%

• System Type: Convertible Gas/Electric Packaged Unit

• Refrigerant: R-410A (Factory charged)

• Compressor: High-efficiency scroll

• Voltage: 208/230V, Single Phase

• Airflow Configuration: Convertible (horizontal or downflow)

• Liquid Line Size: 3/8"

• Suction Line Size: 3/4"

• Weight: Approx. 320 lbs

• Cabinet: Galvanized steel with weather-resistant powder coating

• Top-discharge fan for efficient and quiet airflow

• Direct spark ignition and integrated control board

• Utility connections on left and right for easier installation

• Convertible to LP with optional kit

• Suitable for slab or rooftop installations
