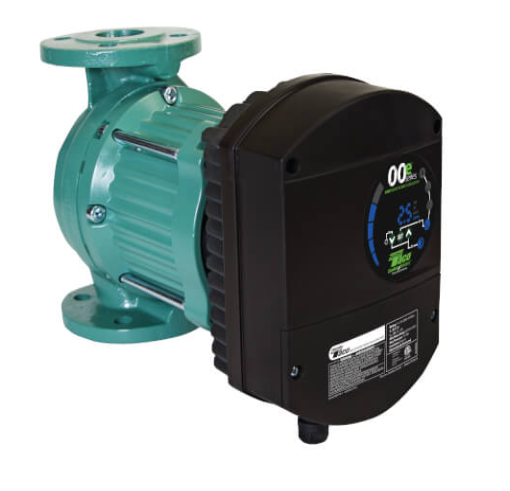

Taco VR20-1 Viridian High-Efficiency ECM Circulator Pump, 0.035–1.088 HP, 110–240V

The Taco VR20-1 Viridian is a high-efficiency, web-enabled circulator pump designed for commercial chilled and hot water applications. Featuring a variable-speed, wet-rotor design, it offers precise flow control and energy savings of up to 80% compared to conventional pumps. Its ECM motor adjusts performance based on system demand, ensuring optimal efficiency. With internet connectivity, installation, setup, and service are streamlined, allowing for remote access and configuration.

Key Features:

• Horsepower: 0.035 to 1.088 HP

• Voltage: 110–240V, Single Phase

• Flow Range: 0–235 GPM

• Max Head: 45.54 ft

• Max Operating Pressure: 175 PSI

• Temperature Range: 14°F to 230°F

• Connection: 2" Flanged x Flanged

• Material: Cast Iron

• Control Modes: Constant Pressure, Proportional Pressure, Constant Speed, and Power Limitation

• Connectivity: Web-enabled for remote access and configuration

Note: The VR20-1 model has been discontinued as of August 3, 2017. For a direct replacement, consider the Taco VR20-3 Viridian Circulator Pump, which offers similar specifications and enhanced features
